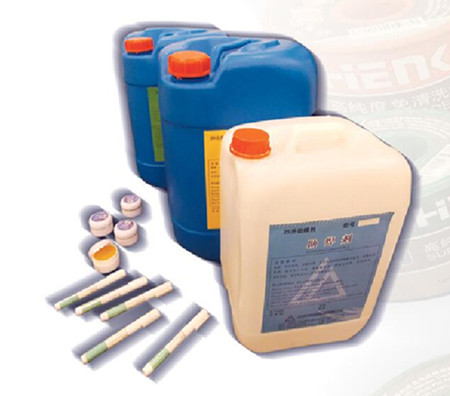

Solder Flux

　　The flux is one of the important factors of successful welding. Flux of this company is composed of high-purity chemical materials and is produced under strict quality control. It can remove the oxide and maintain the metal solder face clean with good lubrication to conduct good welding. Aiming at different operation methods and different requirements, multiple types of flux are equipped for alternative.

	Item	Specification
	Solder Flux	Wave-soldering
		Low temperature dip soldering
		High temperature dip soldering
		Hot air leveling
		Water base series
		Alumium used series
		Stainless steel used series
		Solid solder flux
		Special flux
		It's divided by lead-free,lead,low halogen,halogen free used

　　Product advantages:
　　• Excellent heat resistance can withstand multiple thermal cycles
　　• Good moisture resistance can protect the copper surface from producing oxidation for several months
　　• There is a very small number of ion contaminants, without residues or areas outside the copper surface
　　• It is chemically mild with low-temperature process, without anti-welding layer peeling, corrosion coating and other undesirable phenomena

Type	Resin base flux				No-clean flux		Water-soluble flux	Stainless steel flux
	HG-601	HG-603	SZ-101	SZ-103	NF-975	NF-976	HG-701	HG-901
Shape, Color	Colorless or light yellow transparency liquid			Brown non-volatile liquid	Colorless transparency liquid		Colorless transparency liquid	Colorless or light yellow transparency liquid
Solid content%	8.2	6	9.5	20	4.2	4	8	11
Specific gravity	0.806	0.802	0.81	1	0.8	0.8	1.05	1.45
Acid value（mgKOH/g）	45	40.5	55	65	33	30	68	/
Residue after soldering	Dry	Dry	Dry	Dry	Dry	Dry	Dry	Dry
Surface insulation resistance（Ω）	＞10¹¹	＞10¹¹	＞10¹¹	＞10¹¹	＞10¹¹	＞10¹¹	/	/
Copper mirror test	Pass	Pass	Pass	Pass	Pass	Pass	/	/
Diffusibility	85	85	85	85	85	85	＞90	＞90
Special diluents	XS-108						XS-109
coating patterns	Foaming、Spray、Brush coating、Dipping			Brush coating、Dipping	Foaming、Spray、Brush coating、Dipping
PH Value	4.5	4	5.5	6	4	4	4.5	4.5
Characteristics	The lead-free soldering flux is with no corrosion residue, evenly distributed in light-colored and is suitable for high-density, larger circuit boards. It needs to be cleaned after welding.	Lead-free solder with no-clean flux is a kind of RMA-type flux with high-solder joints, without joint welding and false welding, and is suitable for high-density hybrid circuit boards.	It is mainly used for the wire, transformer, coil, enameled wire or other original parts of the tin-plated pins. This product has no residue, but with bright feet, fast tin-coating and remains easy to climb after welding.	It is mainly used for the wire, transformer, coil, enameled wire or other original parts of the tin-plated pins. This product has no residue, no corrosion, but with bright feet, fast tin-coating and remains easy to climb and non-volatile after welding.	It is the cleaning-free leadless flux, belonging to the R-type and halogen-free flux. It has good infiltration ability and is suitable for high-density hybrid circuit boards, especially for the soldering of PCB boards of various small household appliances.	It is the cleaning-free leadless flux, belonging to the R-type and halogen-free flux, and is suitable for microelectronics, wireless assembly line welding and high-density hybrid circuit boards, especially for wave soldering of the motherboard, computer peripheral products.	It is mainly used for welding high-density hybrid circuit boards and components of severe oxidation. It has to be cleaned after welding.	It is a special flux and is suitable for soldering of stainless steel, aluminum and other materials.

All specification can be customized
